Manual/pup switching system knowledge for rg2027?


anyone got a manual
for the rg2027?

especially interested in the pup switching
system. what pups are being used when the
switch is all the way up, and so on, and so forth...

help is very much appreciated.

Ray karbonadenam@hotmail.com
quote
  #2
Old 12-16-2002, 06:00 PM
rlintz  is offline

Join Date: Jul 2001
Location: California
Posts: 466  -  iTrader: (1)
Pretty standard Ibanez stuff:

1) Bridge humbucker in series.
2) Inside coils
3) Both neck and bridge humbuckers
4) Neck humbucker in parallel
5) Neck humbucker in series

http://www.ibanez.co.jp/japan/el_gui...w_classic5.gif


Randy
quote
  #3
Old 12-16-2002, 07:12 PM
The Dark Wolf  is offline

Join Date: Nov 2001
Location: Toledo, Ohio, USA
Posts: 688  -  iTrader: (1)
Also must note this is a very versatile arrangement when paired with good pickups (the stockers aren't bad.) I have the TZ7 and the AN7 (pretty common for the 2027.) I find I can get a good tone for most any type of music I play.
1. Jazz - Neck series or parallel. Pos. 5 and 4 respectively. Sounds good.
2. Blues - Neck series, parallel and inside coils. Pos. 5, 4, and 2.
3. Rock - Neck parallel, inside coils, bridge. Pos. 4, 2, and 1. Great for crunch, lead, and clean passages.
4. Funk - Inside coils. Pos 2. Sparkly!
5. Metal - Neck series, bridge. Pos. 5 and 1. Great for searing leads, heavier-than-thou rhythms, and cutting dirty fills.
6. Pop- Neck parallel or inside coils. Pos. 4 and 2. Jangly, light, airy.
8. Nu-metal- Both humbuckers. Pos. 3. Scooped sounding, very articulate, but heavy.
7. Lead- Both neck and bridge series, or together. Smooth, super rich, creamy, everything ya like.

Just a sampling of some of my observations on the 2027's versatility. Haven't even't touched the piezo-acoustic yet!
quote
  #4
Old 12-28-2002, 09:37 PM
straymond  is offline

Join Date: Dec 2002
Location: Norway
Posts: 717  -  iTrader: (0)
Thanx, guys!

That helped alot!

Ray
quote
  #5
Old 12-28-2002, 09:56 PM
Rich  is offline
Vendor

Join Date: Dec 2000
Location: South Jersey
Posts: 19,356  -  iTrader: (21)

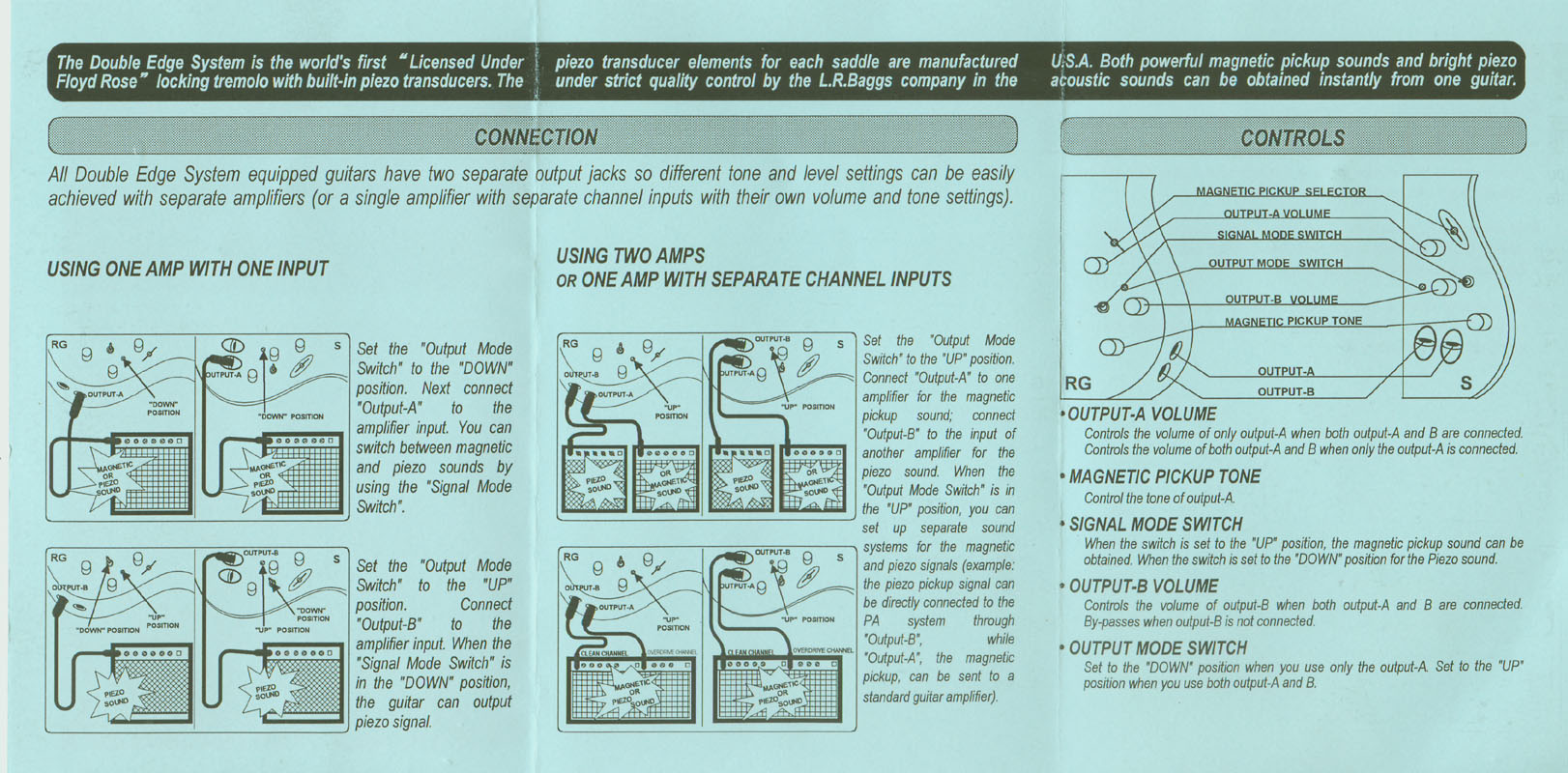

Or you could just use this

http://www.ibanezrules.com/catalogs/...0_controls.jpg
