My GSA60 Project: Blinky

So here is the official thread for my new project. Yesterday I got the guitar for this project. It is a 2004 Ibanez GSA60. Blue.
Got it in working, and cosmetically great shape, for $60, thanks to a mistake by the pawn shop.
here she is.




It plays well, needs setup properly, truss rod and bridge adjustment, and the edges of the frets smoothed out, and a good cleaning (pawn shop guitars always feel dirty to me)

So thats the canvas, now for the project. The goal here is to modify the guitar visually, to include a fabric top (possibly bottom also), mounted like a pick guard. The main mod will be holes of various sizes through the body, covered with a semi-transparent material, and lit with LEDs that only activate when the pickups are getting a signal from the strings. This will give the effect of having a light show on the guitar, synced to my playing. Here is a photoshop mockup of one design I have considered.


If the visual mod works out, I also plan to replace the single coils with some that are more vintage voiced.


The first things to tackle:
-Clean and setup the guitar
-Figure out exactly how it will be wired (getting close)
-Decide on a color for the LEDs.
-Decide on a fabric
-decide on a pattern for the holes (i like what I have alot, but there is concern that a couple of the holes will be covered by my picking arm)
-Figure out what will work well as a semi-transparent material to diffuse the light, but also look good when the lights are off.
ohaple is offline
Sponsored Links
Advertisement

post #2 of 39 (permalink) Old 03-06-2013, 04:08 PM

Join Date: Mar 2012
Location: Stockton, CA
Posts: 977
Reviews: 15
Re: My GSA60 Project: Blinky

Tuning in for this one.
silverctr is offline
post #3 of 39 (permalink) Old 03-06-2013, 04:49 PM

Join Date: Nov 2009
Location: TN
Posts: 589
Re: My GSA60 Project: Blinky

Quote:
Originally Posted by silverctr View Post
Tuning in for this one.
Seconded
Boombatty is offline
post #4 of 39 (permalink) Old 03-06-2013, 05:06 PM Thread Starter

Join Date: Jan 2013
Location: behind you
Posts: 156
Re: My GSA60 Project: Blinky

any votes on where to place the holes? either of the designs above? or something different?

Here is the potential wiring diagram for those interested.

Also, here is another idea for light placement. Right now it looks like I might go with acrylic for the inserts, matte finish, so the light shines upward, but can be side-lit.

Last edited by ohaple; 03-06-2013 at 05:29 PM.
ohaple is offline
post #5 of 39 (permalink) Old 03-06-2013, 07:41 PM

Join Date: Jan 2012
Location: New York
Posts: 2,510
Re: My GSA60 Project: Blinky

If you're really going to call it "Blinky" you better paint it red and use your leds for eyes
Swirltop is offline
post #6 of 39 (permalink) Old 03-06-2013, 07:48 PM

Join Date: Jul 2011
Location: Saint Paul, Minnesota
Posts: 2,646
Re: My GSA60 Project: Blinky

Quote:
Originally Posted by ohaple View Post
any votes on where to place the holes? either of the designs above? or something different?

Here is the potential wiring diagram for those interested.

Also, here is another idea for light placement. Right now it looks like I might go with acrylic for the inserts, matte finish, so the light shines upward, but can be side-lit.
take into consideration that with these holes, your guitar might tend to nose-dive if it ends up off balance from the missing wood. I would try to find a pattern that isn't going offset the balance.
GUITARMAGEDDON is offline
post #7 of 39 (permalink) Old 03-06-2013, 08:05 PM Thread Starter

Join Date: Jan 2013
Location: behind you
Posts: 156
Re: My GSA60 Project: Blinky

The color is kinda like the ghosts after PAC man gets the big pill. Add some red lights and its blinky lol.

I understand the possible balance and tone effects, but can add weight back if the balance is and issue. I will be adding electronics and 3/8 or 1-2 in acrylic, which will have some weight to it.
Which design is your favorite visually?
ohaple is offline
post #8 of 39 (permalink) Old 03-06-2013, 08:58 PM

Join Date: Jan 2012
Location: New York
Posts: 2,510
Re: My GSA60 Project: Blinky

The last pic you put up with the green is the best out of the three IMO.
Swirltop is offline
post #9 of 39 (permalink) Old 03-06-2013, 09:50 PM

Join Date: Jul 2011
Location: Saint Paul, Minnesota
Posts: 2,646
Re: My GSA60 Project: Blinky

Quote:
Originally Posted by ohaple View Post
The color is kinda like the ghosts after PAC man gets the big pill. Add some red lights and its blinky lol.

I understand the possible balance and tone effects, but can add weight back if the balance is and issue. I will be adding electronics and 3/8 or 1-2 in acrylic, which will have some weight to it.
Which design is your favorite visually?
I like the last one.. reminds me of crop circles
GUITARMAGEDDON is offline
post #10 of 39 (permalink) Old 03-06-2013, 10:07 PM

Join Date: Jul 2010
Location: US
Posts: 408
Re: My GSA60 Project: Blinky

I think you should make the circles the shape of music notes, although that would be more difficult to light I would image. Still, very ambitious project! gl ^ ^
jer3d is offline
post #11 of 39 (permalink) Old 03-06-2013, 10:12 PM Thread Starter

Join Date: Jan 2013
Location: behind you
Posts: 156
Re: My GSA60 Project: Blinky

Most votes from friends and you guys so far has been the green. Its my favorite too, but I wish I could make them all....

Anyone that might want to duplicate the project, let me know. I can help you with wiring designs and all.
ohaple is offline
post #12 of 39 (permalink) Old 03-07-2013, 11:59 AM

Join Date: Mar 2011
Location: Central Coast California
Posts: 217
Reviews: 9
Re: My GSA60 Project: Blinky

Last design for sure.
fly_with_v is offline
post #13 of 39 (permalink) Old 03-07-2013, 12:29 PM Thread Starter

Join Date: Jan 2013
Location: behind you
Posts: 156
Re: My GSA60 Project: Blinky

So I'm scrapping the fabric. The whole reason I was going to do that was because I was most likely going to get a front routed guitar, and would need to replace the pickguard, making it look like it didnt have. One. Now that I have a rear routed guitar, I am just going to keep the finish.

Going with the last design for sure. Now to choose color..

Got it all cleaned up, set the spring tight enough so the trem isn't floating, tuned, set truss rod, set pickup height, and intonated.

Here she is all cleaned up.


I made some mock ups, placing paper circles on the guitar to get a better idea of size




EDIT:
So now I am trying to figure out how I am going to route the wiring, where to put the electronics. The leds will be wired in parallel, so they all need to connect to where the battery and guitar output meet. I have no interest in this being a floating trem, since tuning stability is the last thing I want to worry about, especially with the cheap tuners and nut (which I refuse to spend money on right now).

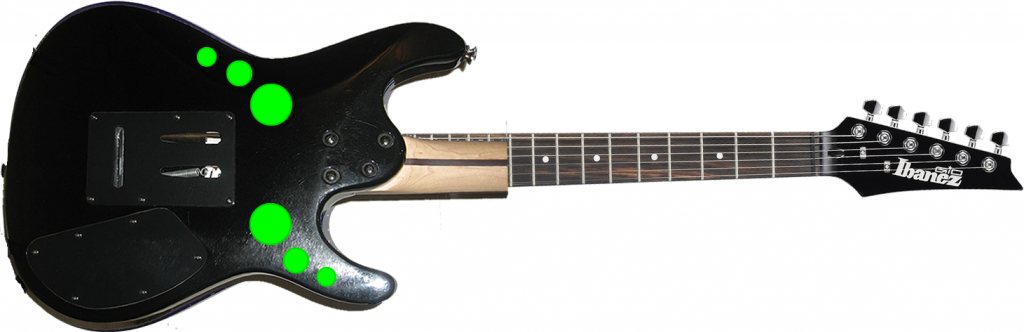

Since I have no need for the springs or the claw, that leaves that entire cavity for me to tinker with my electronics. The problem is, how to route wiring with the least amount of routing, and the most functionality. The idea I am leaning towards looks somewhat like this (the image is mirrored, as if it were a lefty, but everything is in the right place)
This is what the back would look like, with the holes drilled.

To route the wiring, I was thinking of using the dremel flex shaft, and drilling holes, under the surface (not visible from above), from cavity to cavity, for the purpose of routing wires and LEDs. The drilled spots would be like this (marked in gray)

Last edited by ohaple; 03-07-2013 at 01:24 PM.
ohaple is offline
post #14 of 39 (permalink) Old 03-07-2013, 04:50 PM

Join Date: Mar 2012
Location: Stockton, CA
Posts: 977
Reviews: 15
Re: My GSA60 Project: Blinky

Any particular reason that you have to drill the holes all the way through the body? You could probably go half way through and line the bottom/sides with some reflective material so that the light doesn't get lost out the back of the guitar in turn making the light more intense on the front. Theoretically speaking of course.
silverctr is offline
post #15 of 39 (permalink) Old 03-07-2013, 04:54 PM Thread Starter

Join Date: Jan 2013
Location: behind you
Posts: 156
Re: My GSA60 Project: Blinky

Well it's more a practicality. I was going to use a hole saw, meaning I need to go all the way through. However, I planned on getting an extra set if acrylic pucks to paint metallic and cap the bottom. Even if I had a Cnc machine, I would want to go all the way through, otherwise setting up the leds properly will be a bitch.
ohaple is offline
